WalVisions Test Patterns

Test Patterns Home  -  Animated Patterns  -  Individual Patterns  -  Full Field Patterns



Repeating and Full Field Test Patterns - Descriptions

Repeating Test Patterns

For best use of these repeating patterns (WV-51 to WV-57), a "pixel by pixel" display is necessary.   For fixed resolution (digital) displays, this means setting the graphics display output to exactly match the projector/display resolution, and setting the display scaling to "native" or "true" or "resizing OFF".  While this isn't important for many of the patterns at WalVisions, for the Repeating Patterns this "pixel by pixel" display mapping is necessary to achieve the maximum pattern benefit.

WV-51 Complex Test Pattern

This repeating pattern can be used for many checks, including geometry, color registration, overscan, gray scale, brightness and contrast control setting, pixel clock and phase setting, resolution, bandwidth, focus and aliasing.  This is possibly the one single pattern that is the most revealing about a display's characteristics.
WV-52 Convergence Test Pattern

This pattern is a critical test of color registration and individual color focus over all parts of the screen.  The positions of the red, green and blue images can be directly compared to each of the other colors, both horizontally and vertically. The focus of each color is also apparent in all parts of the screen.  Look carefully at plasma and LCD panels, and you will see that the red, green and blue vertical line are offset from each other in the horizontal direction!
WV-53 Alternating Pixel Test Pattern

This pattern consists of pixels that alternate ON-OFF going across the screen. In some row sections the pixels are arranged in columns, and in row sections they are staggered.  For displays that exactly match the source resolution, pixels should be perfectly clear. If not, the Clock and Phase adjustments may be necessary.
WV-54 256 Level Horizontal Gray Ramp

Each block of this repeating pattern consists of all gray levels from 0 to 255, which corresponds to 24 bit color (8 bits each for red, green, blue). Each small bar marks the four pixel wide column for each particular level. The pattern should display as a smoothly increasing brightness ramp without any coloration.  How many times this is repeated will depending upon your display resolution - you can compare the performance in different screen areas by looking at the pattern in the different areas.
WV-55 256 Level Vertical Gray Ramp

Each block of this repeating pattern consists of all gray levels from 0 to 255, which corresponds to 24 bit color (8 bits each for red, green, blue). Each small bar marks the six pixel tall row for each particular level. The pattern should display as a smoothly increasing brightness ramp without any coloration.  How many times this is repeated will depending upon your display resolution - you can compare the performance in different screen areas by looking at the pattern in the different areas.
WV-56 64 Lowest Level Vertical Gray Steps

Each block of this repeating pattern consists of all gray levels from 0 to 63, which corresponds to the lowest 64 of 256 levels in 24 bit color (8 bits each for red, green, blue). These low steps should be color-free, but you should be able to make out the differences in levels, particularly for the lowest steps.  How many times this is repeated will depending upon your display resolution - you can compare the performance in different screen areas by looking at the pattern in the different areas.
WV-57 90% Step Diff Vertical Gray Steps

Each block of this repeating pattern is 90% of its brighter neighbor. The peak level is full white, and the minimum level is about 1/500th of peak white, assuming a properly setup display with a gamma of 2.5. The apparent brightness difference for each of these steps should be approximately the same, and all should appear gray (color-free).
  How many times this is repeated will depending upon your display resolution - you can compare the performance in different screen areas by looking at the pattern in the different areas.
WV-58 Resolution Targets

Each block of this repeating pattern is a resolution target consisting of a series of alternating ON/OFF lines of pixels.  The finest lines are one pixel wide, the medium lines and two pixels wide, and the widest lines are four pixels wide.  This pattern can be used to check resolution over all screen areas.
WV-59 Complex2 Pattern

Each block of this repeating pattern is a composite test target consisting of a mini color bar pattern, a mini gray scale pattern, a resolution-focus-registration pattern, gray block, and the WalVisions name-logo.  This pattern can be used to check for uniformity and consistency of all these patterns over all screen areas.  Note that each individual test block is 160 x 160 pixels.
WV-60 Complex3 Pattern

An enhanced version of WV-59, each block of this repeating pattern is a composite test target also includes 1 and 2 alternating pixel vertical and  horizontal lines, and tick marks that are spaced at  every 10 pixels, and the test block is 200 x 200 pixels.  Like WV-59 this pattern can be used to check for uniformity and consistency of all these patterns over all screen areas, as well to check for true pixel to pixel mapping and possible scaling artifacts.

Full Field Test Patterns

Click on any pattern to view the full screen. Use the F11 key to fill more of the screen on your browser.   These patterns are used to check for color and gray uniformity across the screen, and for blemishes or imperfect pixels in the display. These patterns should be the same in all parts of the screen, with no shading present; the middle level fields (40% and 60%) usually show shading the best. The Black Field can show pixels stuck "ON" in digital displays, and can also show up panel dust as brighter areas. For digital displays, the White Field can be used to check for panel dust - while displaying the pattern refocus the lens to bring the dust into focus.  The 40% red, green and blue patterns can be useful in checking the condition of polarizers and LCD panels in LCD projectors.

WV-61 Full Black Field WV-62 20% White Field WV-63 40% White Field
WV-64 60% White Field WV-65 80% White Field WV-66 Full White Field

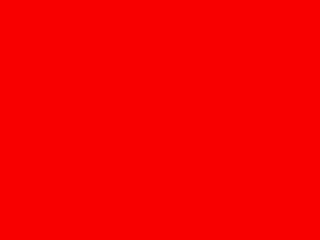

WV-67  Full Red Field WV-68  Full Green Field WV-69  Full Blue Field
WV-70  40% Red Field WV-71  40% Green Field WV-72  40% Blue Field
WV-73  Full Yellow Field WV-74  Full Cyan Field WV-75  Full Magenta Field
WV-76  40% Yellow Field WV-77  40% Cyan Field WV-78  40% Magenta Field
